Speed Karts Inc.

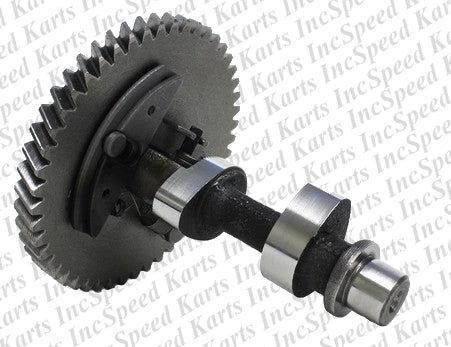

DynoCams CL-4 Low Duration NKA ONLY Camshaft
DynoCams CL-4 Low Duration NKA ONLY Camshaft
Regular price
$48.00 USD
Regular price
Sale price
$48.00 USD
Unit price
/
per
Couldn't load pickup availability
Description
- The CL-4 is specifically designed for the NKA rule package with no minimum duration requirements.
- 7000 RPM range.
- This cam comes buffed.
- Hardened lobes for extra durability and longevity.
Specs
| Engine: | 196cc OHV Clone, 212cc OHV Predator |
|---|---|
| Recommended Class: | NKA Unrestricted Stock Classes |
| Target (MAX) RPM: | 6900-7100 |
| Spring Pressure (In / Ex): | 10.8 lbs |
| Valve Lash (In/Ex): | .001" |
| Ignition Timing: | 34-36 Deg BTDC |
Profile
| Intake | Exhaust | |
|---|---|---|
| Open: | 28.75 BTDC | 66.30 BBDC |
| Close: | 75.25 ABDC | 40.52 ATDC |
| Lift: | .224" | .231" |
| C/L: | 114.0 ATDC | 103.5 BTDC |
| DUR @ 50: | 220.1 Deg | 223.5 Deg |
| DUR @ 200: | 79.90 Deg | 89.45 Deg |
